Floor Hinge (HD 508A)

Pass the test of EN1154 door closing detection
Originate the special filler, anti-rust, water proof, keep warm, insect prevention
It can be used on both left and right side door
Bidirection opening and the single side open can be achieved by auxiliary method
Suit for wooden door, glass door, metal door, frame door


Location type 90° Door width
800~1,200mm Maximum Loading 130kg Life cycle
>1,000,000 Cycles Main Material Main body--Gray pig iron; Cover plate—SS304 Speed control

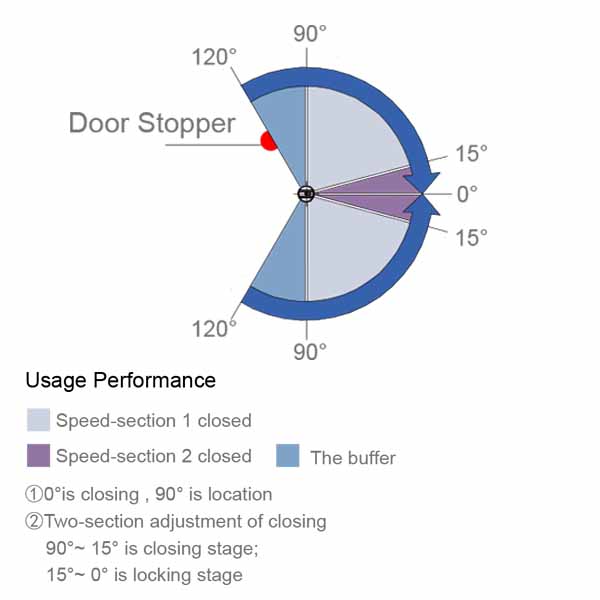

Two speed section

Brand :


Pass the test of EN1154 door closing detection
Originate the special filler, anti-rust, water proof, keep warm, insect prevention
It can be used on both left and right side door
Bidirection opening and the single side open can be achieved by auxiliary method
Suit for wooden door, glass door, metal door, frame door


Location type 90° Door width
800~1,200mm Maximum Loading 130kg Life cycle
>1,000,000 Cycles Main Material Main body--Gray pig iron; Cover plate—SS304 Speed control
Two speed section
Location type 90° Door width
800~1,200mm Maximum Loading 130kg Life cycle
>1,000,000 Cycles Main Material Main body--Gray pig iron; Cover plate—SS304 Speed control
Two speed section
